Thunder 4000M  Reverse Osmosis/Ultrafiltration

Click on above image to view full picture

More Views

  • Thunder 4000M  Reverse Osmosis/Ultrafiltration
  • Thunder 4000M  Reverse Osmosis/Ultrafiltration

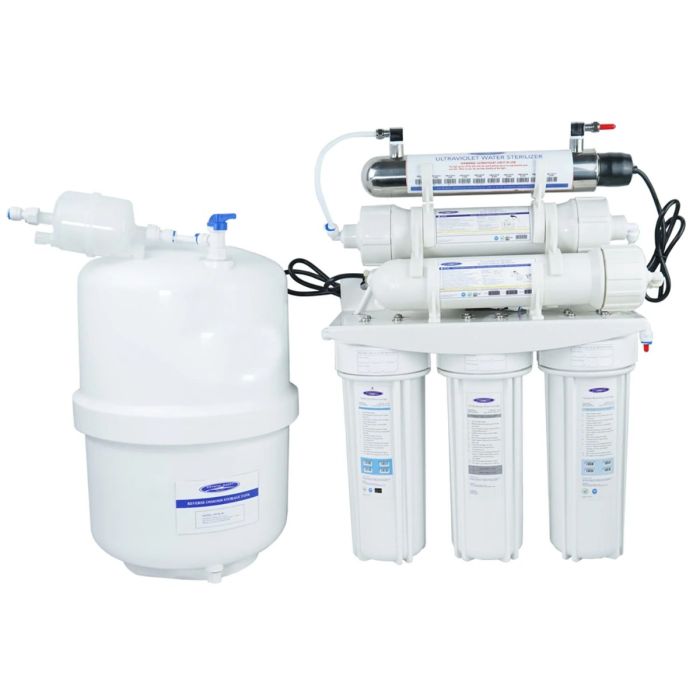

Thunder 4000M Reverse Osmosis/Ultrafiltration

Review this product

Availability: In stock

$524.16

Quick Overview

The Thunder 4000M is a 17 stage Reverse Osmosis filtration system. It is one of the most advanced and effective systems available. It will remove up to 99.9% of undesirable contaminants and filter particles as small as 1/1000 of a micron.


FREE Shipping




$524.16

CRYSTAL QUEST 50,75 and 100 GPD Thunder 4000M Reverse Osmosis/Ultrafiltration


Our RO systems remove 93-95% of Fluoride and are capable of removing drug residues and virtually all pharmaceutical contaminants from water! They will also filter radioactive particles.

Click here to see contaminant rejection data


CRYSTAL QUEST Reverse Osmosis/Ultrafiltration systems are revolutionary breakthrough in the reverse osmosis and Ultrafiltration industry. Through years of experience, research have produced totally new most effective, healthiest Reverse Osmosis/Ultrafiltration systems in today market. CRYSTAL QUEST Reverse Osmosis/Ultrafiltration systems available at 12 to 17 stages - the number varying with model of Reverse Osmosis/Ultrafiltration system that CRYSTAL QUEST offers. CRYSTAL QUEST Reverse Osmosis/Ultrafiltration systems produce up to 100 gallons of top quality water per day and remove up to 99.9% of undesirable contaminants and filter particles as small as 1/1000 of a micron by forcing untreated water through a semi-permeable membrane. Pressure forces the water to flow in the reverse direction to the direction of flow in natural osmosis.

CRYSTAL QUEST Reverse Osmosis/Ultrafiltration systems have compact designs that can easily fit beneath the kitchen sink. Supplied with a complete installation kit that includes a European lead-free long-reach designer faucet, CRYSTAL QUEST 4 gallons steel pressurized holding tank, all interconnecting color-coded tubing, filter cartridges, Ultrafiltration membrane, RO membrane, and installation hardware for easy homeowner installation.

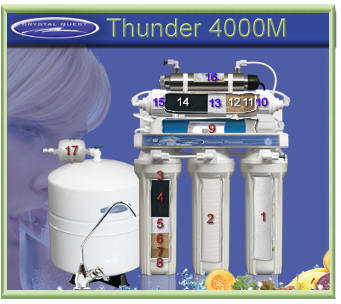

Water travels through 17 stages of filtration:


In stage 1, Water travels through a 5 micron solid carbon cartridge for removing volatile organic carbon compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles larger than 1 micron including sediment, silt, sand and dirt. It also helps to extend the life of the system.

In stage 2, water passes through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important purification technology used for the production of high-purity water. UF is effective for the removal of colloids, proteins, bacteria, viruses, parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules larger than .01 micron, and most other water contaminants known today.

In stage 3,  Water flows through pre one - micron filter pads (1 micron equals 1/25,000th of an inch), which removes suspended particles such as silt, sediment, cyst (Giardia, Cryptosporidium), sand, rust, dirt, and other undissolved matter.

In stage 4, water passes through granulated activated carbon (GAC). GAC is universally recognized and widely used as an effective adsorbent for a wide variety of organic contaminants, such as chlorine (99.9%), chemicals linked to cancer (THM's, benzine) pesticides, herbicides, insecticides, volatile organic compounds (VOC's),  PCB's, MTBE's and hundreds of other chemical contaminants that may be present in water, bad taste, and odors from your drinking water. Read more about GAC

In stage 5, Water flows through the ion exchange resin, reducing heavy metals such as lead, copper, aluminum, and water hardness.

In stages 6 and 7, water flows through 2 beds of Redox (Oxidation/reduction process) media made of a special high-purity alloy blend of two dissimilar metals - copper and zinc.  Representing a new and unique way of water processing medium which by its natural process of electrochemical oxidation/reduction and adsorption action reduces and/or removes many unwanted contaminants from water. It is a major advancement in water treatment technology that works on the electro-chemical and spontaneous-oxidation-reduction (REDOX) principles. Chlorine is instantaneously and almost inexhaustibly oxidized.
Iron and hydrogen sulfide are oxidized into insoluble matter and attach to the surface of the media. Heavy metals such as lead, mercury, copper, nickel, chromium, cadmium, aluminum, and other dissolved metals are removed from the water by the natural process of electrochemical process. They are attracted to the surface of the media, much like a magnet. The media inhibits bacterial growth throughout the entire unit.
Read more about Redox (Oxidation/reduction process) media

In stage 8, Water flows through another one-micron filtration pad for further reduction of undesirable particles. The end result is a great reduction or elimination of a wide variety of contaminants.

In stage 9, Water passes through a CRYSTAL QUEST reverse osmosis membrane, which removes and filters particles as small as 1/1000 of a micron as most inorganic chemicals (such as salts, metals, minerals) most microorganisms including cryptosporidium and giardia, and most inorganic contaminants. Click here for more information
In stage 10 and 15,  Water flows through another one - micron filter pads(1 micron equals 1/25,000th of an inch), which removes suspended particles such as silt, sediment, cyst (Giardia, Cryptosporidium), sand, rust, dirt, and other undissolved matter.

In stages 11  and 12, Water flows through another bed of media made of a special high-purity alloy blend of two dissimilar metals - copper and zinc. it is a major advancement in water treatment technology that works on the electro-chemical and spontaneous-oxidation-reduction (REDOX) principles. Chlorine is instantaneously and almost inexhaustibly oxidized.

In stage 13, Water flows through another ion exchange resin, reducing heavy metals such as lead, copper, aluminum, and water hardness.

In stage 14, water passes through granulated activated carbon (GAC).

In stage 16, water passes through an Ultraviolet Water Sterilizer System manufactured with axial flow reactors in 304 stainless steel. The hard glass germicidal lamps provide an economical way of treating water requiring a 99.99% reduction of bacteria and virus and protozoa. This process is accomplished without adding any harmful chemicals to your drinking water. CRYSTAL QUEST Ultraviolet Water Sterilizer System is the most ecological way of treating your water.

water travels through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration. UF is effective for the removal of colloids, proteins, bacteria, viruses, parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules larger than .01 micron, and most other water contaminants known today.

Option: Pressure Pump
A pressure pump will be needed if your water pressure is below 35 PSI, most city water will not need a pressure pump.





Click here to see water test result of Thunder Reverse Osmosis systems

Comes with a complete installation kit that includes a European lead-free long-reach designer faucet, CRYSTAL QUEST 4 gallons steel pressurized holding tank, all interconnecting color-coded tubing, filter cartridges , Ultrafiltration membrane, RO membrane, wrenches and installation hardware.



With 0ptional add-on



 A natural (Alkalinize) ionizer, mineralizer, and oxidation cartridge

And

Fluoride, nitrates, and arsenic cartridges




Click here to download CRYSTAL QUEST Reverse Osmosis/ Ultrafiltration systems manual



SKU CQE-RO-00112
Country of Manufacture United States
Dimensions 16"L x 8"W x 24"H + 4" to change cartridge; Holding Tank 15"H + 3" (UF Membrane/stage 17) x 11"D
